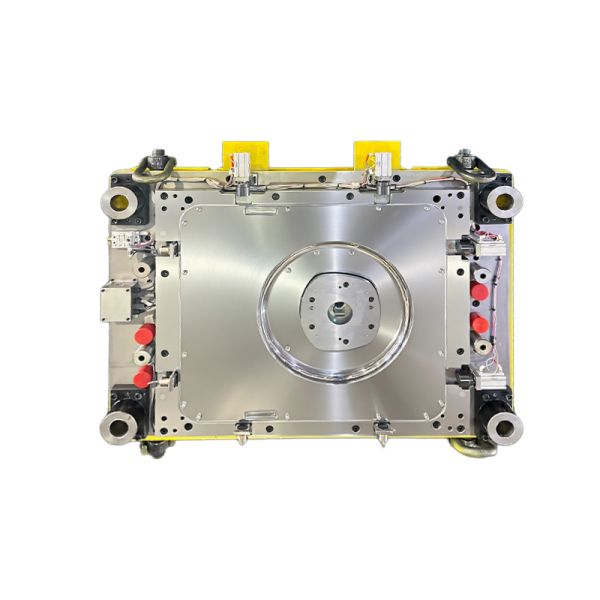

Home Appliance DC53D Sheet Metal Stamping Die for Washing Machine Front Panel

Mould Weight : 4T

Part Material : DC53D-PCM

Sheet Thickness : 0.4mm, 0.5mm, 0.6mm

Brand Name : IDO

Model Number : washing machine front panel

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $10000-$50000

Payment Terms : L/C,T/T

Supply Ability : 300 sets/year

Delivery Time : 45days

Packaging Details : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Transport Package : Wooden Case, Anti-Rust Oil, Vacuum Packaging

Compatibility : Yes

Part Name : Washing machine front panel

Mould Type : Stage mold

Mould Size : 1400*1100*560mm

Contact Now

Home Appliance DC53D Sheet Metal Stamping Die for Washing Machine Front Panel

Description:

The Steel Stamping Die Stage Die for Washing Machine Front Panel with Quick Die Change is engineered for high-precision and efficient sheet metal forming. Made from durable steel, this stage die ensures accurate shaping of washing machine front panels while maintaining tight tolerances and consistent performance. Its quick die change feature significantly reduces downtime, enhancing production efficiency and making it an ideal solution for appliance manufacturers seeking reliable, fast, and high-quality stamping tooling.

Quick Detail:

  • Cycle time: 6–14s, depending on product characteristics.
  • Fast repair within 30 minutes; tool change within 15 minutes.
  • Punch edges sharpen after 300,000–500,000 strokes.
  • Software controls die movements.
  • Only sub-dies need dismantling for maintenance.
  • One tool set can produce multiple models; changeover via program.

Specifications:

Mould/Tool Type Stage tool/mould/die
Production Application White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance ±0.003mm
Hardness Upon request
Surface Treatment TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format DWG, STP, STEP, X_T, IGES, PDF
Design Software Auto CAD, UG, Solidworks
Trade terms FOB (Shanghai)
Mould Lead time Generally 6~8 weeks (as per actual situation)

Home Appliance DC53D Sheet Metal Stamping Die for Washing Machine Front Panel

Home Appliance DC53D Sheet Metal Stamping Die for Washing Machine Front Panel
